4G

Tinklo tipas

4G:

FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G:

HSPA+/HSPA/UMTS:B1/B5/B8 (2100/850/900 MHz)

Greitis

Download Speed 150 Mbps

Upload Speed 50 Mbps

SIM tipas

1× Nano SIM Card

PROGRAMINĖS ĮRANGOS YPATYBĖS

Quality of Service

WMM, QoS

Security

DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding

Operating Modes

3G/4G Router, Wireless Router

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management Features

Access Control, Local Management, Remote Management, Reboot Schedule

DHCP

Server, DHCP Client List, Address Reservation

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

TP-Link DDNS, DynDns, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSec

Access Control

Parental Controls, Local Management Control, Host List, Access Control

Protocols

IPv4, IPv6

Guest Network

2.4 GHz guest network x 1, 5 GHz guest network x 1

VPN Server

PPTP VPN, IPSec VPN, OpenVPN

HARDWARE

Interface

1× 10/100 Mbps WAN/LAN Port (PoE In)

1× Nano SIM Card Slot

1 × DC Port

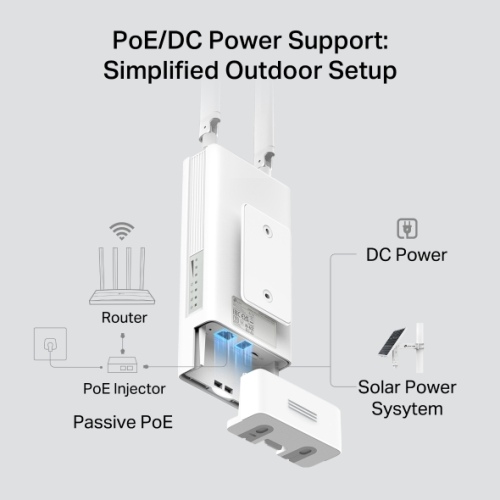

Power

12V/1A

24V/0.5A Passive PoE

44-57V/0.35A 802.3af/at

Buttons

Reset Button

Dimensions (W x D x H)

8.9 x 3.9 x 2.2 in (226.6 x 100x 54.7mm)

Antennas

2 × Detachable LTE Antennas

BELAIDŽIO RYŠIO FUNKCIJOS

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Reception Sensitivity

5 GHz:

11a 54M: -77 dBm

11ac VHT20 MCS0: -95.5 dBm

11ac VHT20 MCS8: -73 dBm

11ac VHT40 MCS0: -93 dBm

11ac VHT20 MCS9: -68 dBm

11ac VHT80 MCS0: -90 dBm

11ac VHT20 MCS9: -65 dBm

2.4 GHz:

11g 54M: -74.5 dBm

11n HT20 MCS0: -92 dBm

11n HT20 MCS7: -73 dBm

11n HT40 MCS0: -89 dBm

11n HT40 MCS7: -70 dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

KITI duomenys

Pakuotės turinys

• AC1200 Wireless Dual Band 4G LTE Outdoor Router Archer MR402-Outdoor

• 10-meter RJ45 Ethernet Cable

• PoE Adapter

• AC Power Cord

• Quick Installation Guide

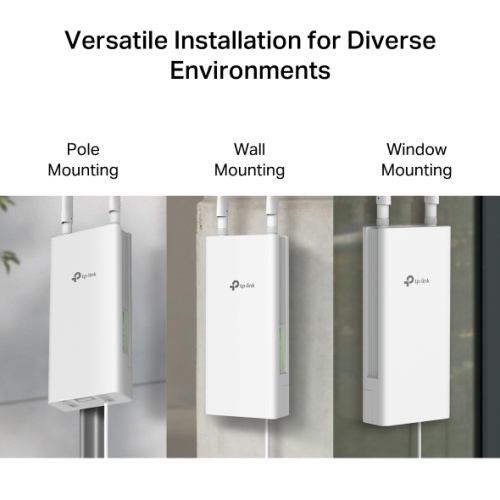

• Window/Pole/Wall Mounting Kits

◇ DC maitinimo adapteris parduodamas atskirai

Reikalavimai

• Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser

*Rekomenduojama naudoti naujausią versiją

• Nano SIM Card

Sertifikatai

CE, RoHS

Environment

Operating Temperature: -30°C~60°C (-22°F~140°F)

Storage Temperature: -40°C~70°C (-40 °F~158 °F)

Operating Humidity: 10%~90% RH

Storage Humidity: 5%~90% RH
